Hardie® Panel and Hardie® Plank Fixing Solutions

Efficient, secure, elegant fixing systems for Hardie® Panel and Hardie Plank®. Built for professionals.

Fixing Systems Hardie® Panel

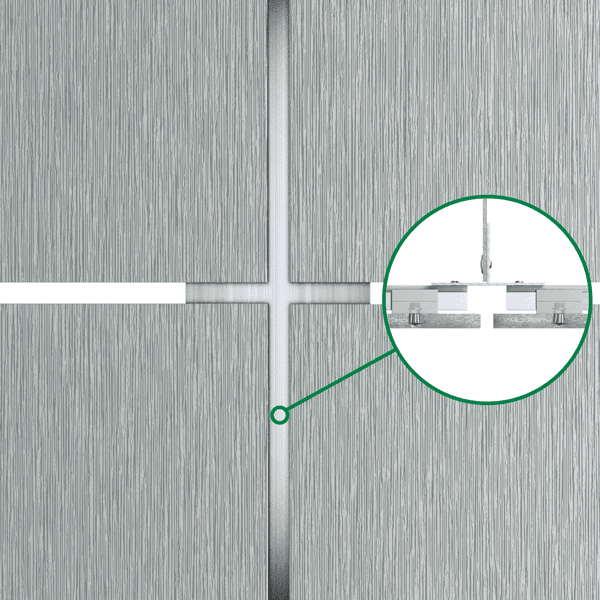

Close-up of textured metal panels with an inset showing a cross-section of the material and its installation details.

Concealed mechanical fixing

Invisible Fixing with glueing

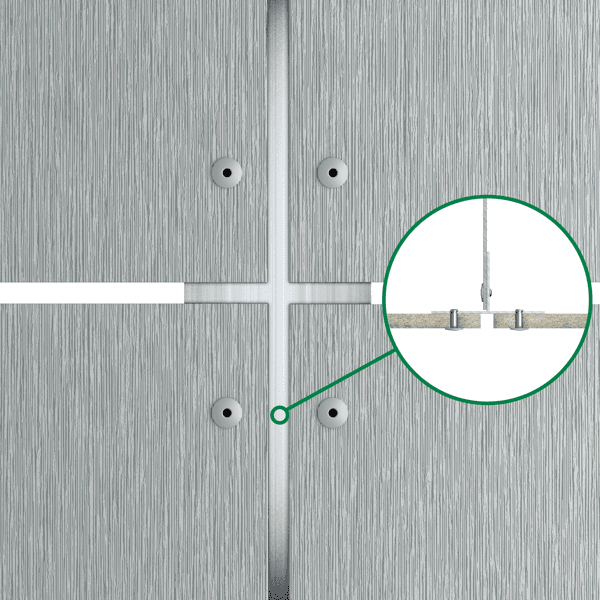

Close-up of a metallic surface with two screws and a highlighted connector showing a clamp mechanism between two panels.

Visible mechanical fixing

Conceal fixing system for Hardie® Architectural Panel

Hardie® Architectural Panel in 11mm thickness installed with mechanical concealed fixings are a durable, qualitative and sleak solution for facade design in new build and renovations.

Hardie® Panel Fixings Compatibility Table

⠀

Fixing Type

Subframe Material

Panel Thickness

Visibility

Panel Screw

Wood

8mm / 11mm

Visible

Panel Rivet

Aluminium / Steel

8mm / 11mm

Visible

KEIL Concealed Anchor

Aluminium / Steel

11mm

Concealed

Innotec Gluing System

Aluminium

8mm / 11mm

Concealed

Fixing Systems Hardie® Plank

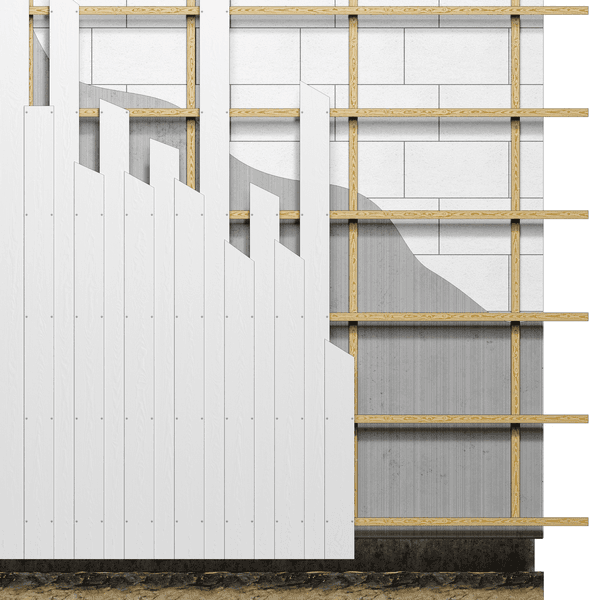

Illustration of a building facade featuring vertical wooden slats, white panels, and a gradient design in gray tones.

Visible mechanical fixing

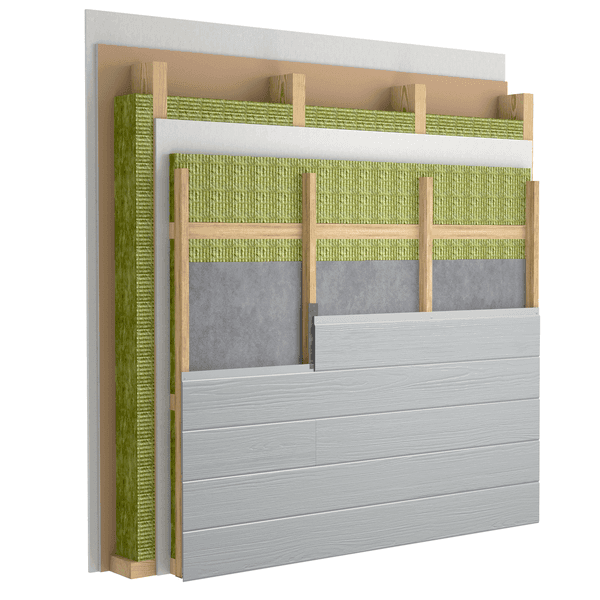

Cross-section of a wall assembly showcasing layers, including insulation, drywall, and wood framing.

Concealed mechanical fixing

Hardie® Plank Fixings Compatibility Table

⠀

Product

Fixing Method

Framing Material

Plank Orientation

Visibility

Hardie® Plank

Nail (1st fix)

Timber

Horizontal

Concealed

Hardie® Plank

Screw

Galvanised Steel / Aluminium

Horizontal

Concealed

Hardie® Plank

Screw & Nail

Timber

Vertical (Hit & Miss)

Visible

Hardie® Plank

Screw

Galvanised Steel

Vertical (Hit & Miss)

Visible

Hardie® Plank

Rivet

Aluminium

Vertical (Hit & Miss)

Visible

Hardie® Plank

Screw

Timber / Galvanised Steel

Vertical / Horizontal (Open joint)

Visible

Hardie® Plank

Rivet

Aluminium

Vertical / Horizontal (Open joint)

Visible

Hardie® VL Plank

Screw

Timber / Aluminium / Galvanised Steel

Horizontal

Concealed

Hardie® VL Plank

Screws (Bugle Head)

Steel

Horizontal / Vertical

Visible

FAQ

Find clear answers to frequently asked questions in our dedicated FAQ section

See all FAQ

Do cut edges need sealing?

Yes, coat all cut edges with Hardie™ Seal or touch-up paint.

How should boards be cut?

Use Hardie Blade™ saw blade or Hardie™ Guillotine for clean cuts and minimal dust.

Can Hardie® Plank boards be fixed directly to masonry?

No, fix to battens or approved subframe system only.

What type of subframe is required?

Install on ventilated rainscreen system with timber or metal battens; minimum 20 mm ventilation gap behind boards.

Should I leave gaps between boards?

Yes, maintain 1–2 mm expansion gaps at butt joints and seal cut edges with ColourPlus^™touch-up paint.

Downloads

Hardie® Panel Products Installation Manual

Download

Your Partner in Building Confidence

From specifications and compliance to custom colours—our team is here to support your facade fixing decisions
